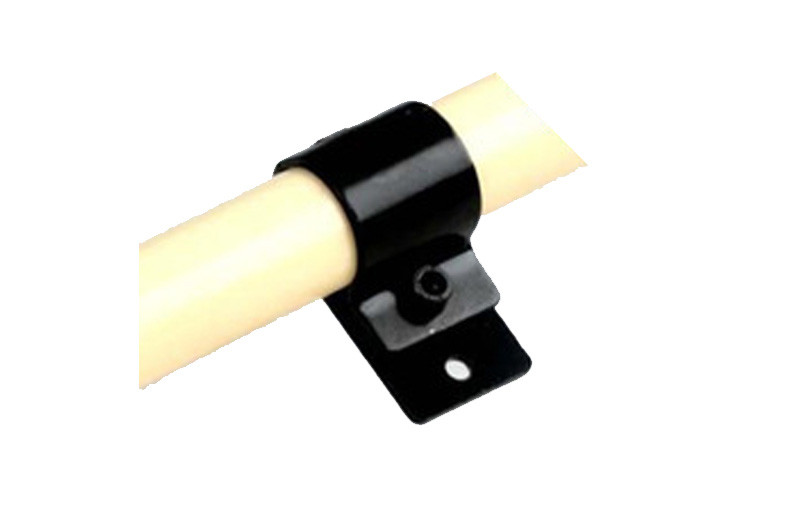

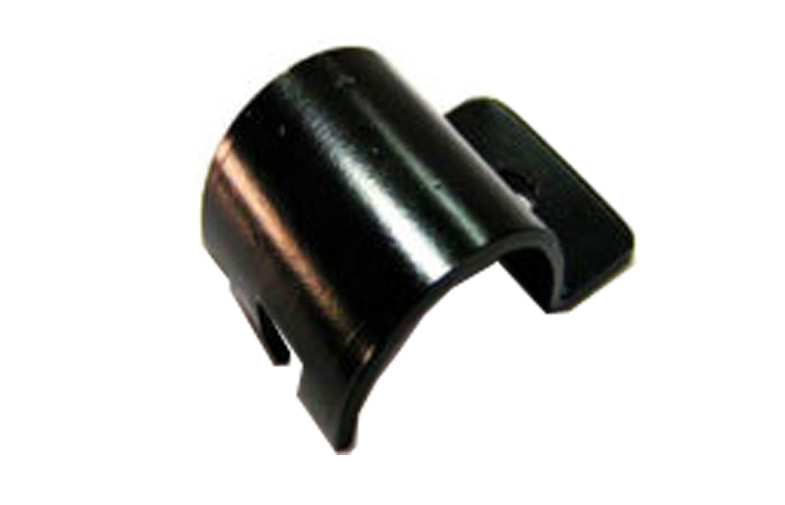

Stamping Flexible Metal Pipe Joints Combine Pipe Clamp Joints and Fitting System

Stamping Flexible Metal Pipe Joints Combine Pipe Clamp Joints and Fitting System

  • Stamping Flexible Metal Pipe Joints Combine Pipe Clamp Joints and Fitting System
  • Stamping Flexible Metal Pipe Joints Combine Pipe Clamp Joints and Fitting System
Stamping Flexible Metal Pipe Joints Combine Pipe Clamp Joints and Fitting System
รายละเอียดสินค้า:
Place of Origin: Shenzhen ,China
ชื่อแบรนด์: Top-King
ได้รับการรับรอง: ISO9001:2008;RoHS
Model Number: H-11
การชำระเงิน:
Minimum Order Quantity: 500 set
ราคา: Negotiation
Packaging Details: 250 pieces packing together in a 300*250*152 mm carton
Delivery Time: 5-7 working days with PO and deposit
Payment Terms: TT
Supply Ability: 10000 pieces per day
ติดต่อ
รายละเอียดสินค้า
Material: 2.5mm Thickness SPCC Color: Black / Silvery
Name: pipe clamp joint Usge: Fixed PE coated pipe for workstation
Shape: pipe clamp Head code: round
HS code: 7307990000 Weight: 38.2g /pcs
Package: 500 piece per carton Package carton size: 360mm*300mm*250mm
Diameter: 28mm Combination: one piece H-10 and one piece H-11 fixed with one set M6*10 bolt&nut to be HJ-13
แสงสูง:

steel pipe joints

,

flexible pipe joint

Stamping Flexible Metal Pipe Joints Combine Pipe Clamp Joints and Fitting System





The Metal Joint will be fastened by bolt and nut so that it is easy for you to assemble or disassemble

Joints offer an easy assembly solution for different structure requirements. Our joints are available in a

 wide range of selection to build any complex structure. The metal joints can easily be fastened by nut

and bolt, making the structures easy to assemble and disassemble.



* Production base:Shenzhen Jingji Co., Ltd



* Model number: H-11



* Brand name: JINGYU



Term of Trade:  EXW / FOB / CIF



1. Material:

 2.5mm Thickness SPCC steel

2. Surface treatment :

Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome

plated(Silvery one)

3.  production procedure:

SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis

Or Plating

4. Main Combination:

one piece of H-10 pipe joints,one piece H-11 and one set  of M6*25 bolt & nut can be assemble one set of  metal pipe joint

HJ-13(H-10*1+H-11*1+M6*25*1)

5.Weight

38.4 g/ pcs

6. Item No.

H-11





Product Description :



1. Metal Pipe Joint Manufacturing standard:

Using international materials production under strict Jingji quality control and inspection.

Ensure the quality



2. Pipe Joint Production process:

Consistent with the national standard thickness 2.5mm (excluding special type products) SPCC

 material. We emphasize on the functions of each product. Cutting corners in manufacturing

process is not allowed.



3. Design requirements:

The standard is in accordance with the most favorable specification in the industry. Emphasizes

on the safety of people, articles, and equipment prolong the service life.



4. Testing:

In addition to the regular standard gauge testing, a special gauge testing is added for every

process to ensure the functional indices reach the standard.



coated pipe joint for storage rack system|warehouse pipe joint for rack|metal joint for warehouse

rack system





Application of H-10 AND H-11  metal pipe and joints.

Stamping Flexible Metal Pipe Joints Combine Pipe Clamp Joints and Fitting System 0

pipes and joints system is both versatile and cost effective as all pipes and joints are reusable,enabling

constructions to be easily reconfigured or products recycled to create equipment to suit different applications.
