High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System

High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System

  • High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System
  • High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System
  • High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System
High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System
รายละเอียดสินค้า:
Place of Origin: Shenzhen ,China
ชื่อแบรนด์: Top-King
ได้รับการรับรอง: ISO9001:2008;RoHS
Model Number: HJ-6
การชำระเงิน:
Minimum Order Quantity: 500 set
ราคา: Negotiation
Packaging Details: 125 SETS in a carton(Size:300*250*152mm)
Delivery Time: Within 7working days after received the deposit.
Payment Terms: TT
Supply Ability: 5000sets per day
ติดต่อ
รายละเอียดสินค้า
Material: Cold Roll Steel Plate Name: metal joint for pipe rack
Connection Type: Cross connection Color: Black and Silvery
แสงสูง:

metal pipe fittings

,

metal tube connectors

High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System



Quick Detail:

1. Weight:0.09kg/set
2. Model Number:HJ-6
3. Diameter:28mm
4.Certificate:ISO9001:SGS
5. Color:Black/Chrome/Others
6. Material:2.3mm Thickness SPCC steel
7. Surface treatment :Surface electrophoresis treatment(Black one), Zinc/ Nickel /Chrome plated(Silvery one)
8.  Production procedure:SPCC Steel→ Cut → Model →Stamping →Polish→ Electrophoresis Or Plating

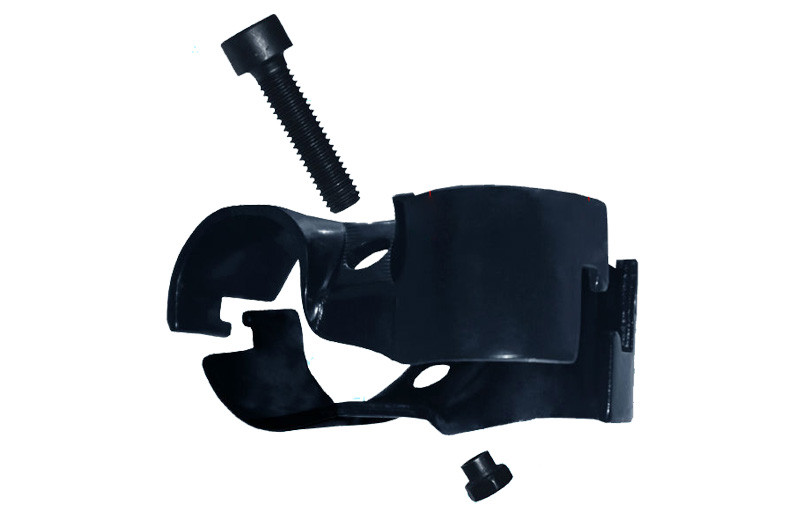

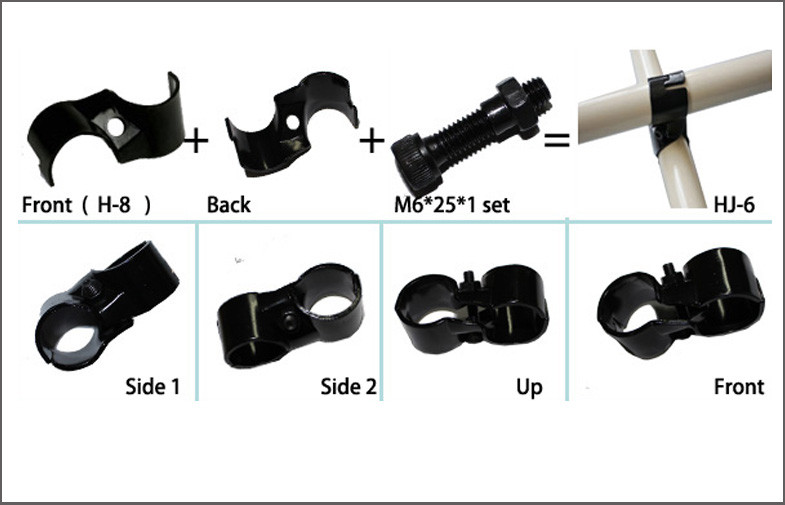

9. Main Combination:Two pieces of H-1 pie joints and one set of M6*25 bolt & nut(H-2*2+M6*25*1)



Product Description:

Metal Joint for Pipe Racks/Metal pipe fittings for coated pipe

  1.  Smooth and glossy surface
  2.  High intensity
    Eco- friendly
    Perfect wear resistance and Flexible
    Material: 2.5mm thickness SPCC steel pipe stamping and surface treatment.
  3.  Surface treatment:
    Electrophoresis/ Chrome/ galvanization
  4.  Technology: Stamping
  5.  Load capacity: Small/medium/heavy


Features:

1. Sample and easy operation
Because metal pipe joints are fixed by M6*25 bolt and nut, only need a M6 spanner to tighten and loosen when assembly and disassembly pipe rack products.
2. High smooth and glossy surface.
Before surface treatment,metal pipe connectors are sent to surface grinding after stamping.
3. Environmental protection, can be reused

Flexible pipe and pipe joints are re-used again. Can be disassembled the pipe rack products and used the lean pipes and pipe connectors again Jut need to loosen the bolt and nut on the metal pipe joints.
4. Pipe rack products’ layer can be adjusted and re-modified
These items together with the coated pipes, metal joints and other accessories can be connected,

they can be applied on pipe rack system,they are totally eco-

friendly and environmental,can be widely used on

production line,warehouse rack.etc


Application:


Using Plastic coated pipes and pipe rack metal joints, all kinds of pipe rack products can be made into.
Pipe and joint system are a flexible and DIY system consists of pipe, joint and specialized accessories, assembled in a variety of configurations to serve various function. It is commonly used as storage and handing equipment including rack, shelves,workstation and trolley.
.
In facts, almost everything can be manufactured by multiunit Pipe and pipe Joint
Our products are sold with competitive price and high quality.



Competitive Advantage:


  1. As we are factory, we can guarantee our price is first-hand, very cheap and compet.And we are direct manufacturer, provide pipe rack system with high quality and best price.
  2. To make sure customer buy good quality material and service from us. Before customer place order,
  3. we will provide sample in free.
  4.  Pipe rack products and design solution supplied fast and freely.Our craftsmanship is solid enough, the technical QC department is a guarantee,we can promise the
  5. quality from our factory Best design oriented for your special requirements.The metal joints are easy and simple to handle,don’t need any special equipment and
  6. technics,simply connected by nuts and bolts to form into any shape and function you want.
  7.  Lifelong technical support.We are involved in manufacturing and supplying a wide range
  8. of metal joints. These metal joints will be fastened by bolt & nut. so that these can be easily assembled &
  9. disassembled.
  10.  Professional team support
  11.  Standard Design
  12.  Concept proposal
  13.  3D Drawing

High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System 0
High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System 1

High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System 2


High Intensity Metal Flexible Pipe Connectors / Pipe Metal Joint for Pipe Rack System 3
