Steel Welded Heavy Duty Slide Tracks Connecting 60mm 85mm Placon Roller

Steel Welded Heavy Duty Slide Tracks Connecting 60mm 85mm Placon Roller

  • Steel Welded Heavy Duty Slide Tracks Connecting 60mm 85mm Placon Roller
Steel Welded Heavy Duty Slide Tracks Connecting 60mm 85mm Placon Roller
รายละเอียดสินค้า:
Place of Origin: Shenzhen ,China
ชื่อแบรนด์: Top-King
ได้รับการรับรอง: ISO9001:2008;RoHS
Model Number: EF-2044C ,EF-2044DW and EF-2044D
การชำระเงิน:
Minimum Order Quantity: 300 PCS
ราคา: Negotiation
Packaging Details: 108 PCS in a carton (Size:360*300*160mm)
Delivery Time: Within 10 days after received deposit
Payment Terms: TT
Supply Ability: 3000 pcs per day
ติดต่อ
รายละเอียดสินค้า
Material: Iron Steel Color: white zinc / zinc plating-coloring / black
Size: Different size for 40mm, 60mm & 85mm roller track
แสงสูง:

sliding roller track

,

heavy duty roller track



Steel Welded Heavy Duty Slide Tracks Connector for Connecting 40mm,60mm and 85mm Placon Roller





Quick Detail:

  1. Metal Connector for roller track, connecting without bolt and nut.
  2. Roller Track support is one part of the materials in FIFO pipe rack products.
  3. Using for roller track and roller track support together for the conveyor system to transport goods, materials and cartons more efficient convenient and faster.
  4. The placon support is for Width 40mm wide ,60mm wide and 85mm wide roller track or OUT Diameter 28mm Coated Pipes
  5. A wide variety of end supports is available to fix and support the roller track on the pipe and joint structure.
  6. Different size of roller track and support for our customers’ choice.

Applications:

  1. Roller Track support using for connecting OD28mm plastic coated pipe and roller track on the flow pipe rack products.
  2. Assembly mobile trolley for transport materials box or finished products.
  3. Connection between the workstation on the assembly line.
  4. Transfer point.
  5. Other products you want to assemble.

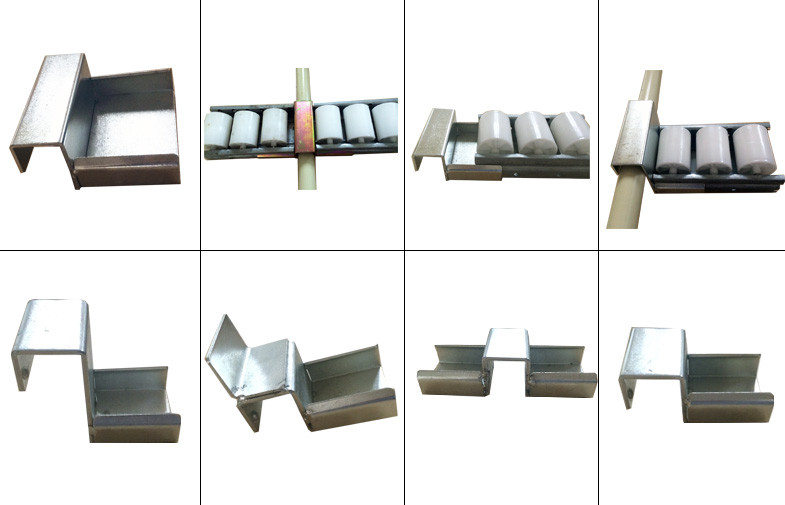

Steel Welded Heavy Duty Slide Tracks Connecting 60mm 85mm Placon Roller 0

Description:

  1. Roller track support also call the connector of roller track. It’s one important parts in flow pipe rack system. Because those placon support one side connecting the Out diameter 28mm coated pipe, the other side connecting the suitable roller track.
  2. A wide variety of end support for customers’ choice,flat end ,higher end and lower end,etc.
  3. Different surface treatment will have three color can be chose. The electrophoresis, plating white zinc, color zinc plating



1

Basic Description:

Used with 60mm wide and 85mm Roller track and 28mm coated pipes as joint, to form into gravity flow racks,carts, etc.

2

We are the direct sparing parts manufacturer,have full of experience in this field,the quality of the goods can be totally trusted, samples are here for your evaluation

3

Outstanding benefits:

 It can be reused for many times.Every layer can be adjusted

 Abrasion resistance

 Much longer longervity

 Durable strength and flexibility

4

With independent import and export authority ,we have established a complete service system





Specifications:



1. Item No.

EF-2044P

2. Material

SPCC steel

3. Surface treatment

Electrophoresis, white zinc plated and color zinc plating

4. Dimension

94*43*40.4mm

5. Weight

0.2kg/pcs

6. Technique

stamping

7. Thickness

2.5mm





Competitive Advantage:



A. Simple and easy to operate.

B. Improving the efficiency of goods circulation

C. Simplify assembling & disassembling without special skills

D. Easy to handle products

E. Unnecessary to equip special facilities  for usage

F. Continuous reforming activities are possible





Our service



 1. The quick delivery time


With the powerful production lines and professional team, we will guarantee the delivery time according

to your request.



2. The perfect package


We pay very much attention to the export packages. We have plastic clips on the beams to protect the

beams from surface damage in the transportation.



3. The long warranty time


The High Standards in the Design and Manufacturing ensure us to support the products with a  10 Years Warranty Time for your normal use.
