Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack

Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack

  • Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack
  • Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack
  • Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack
  • Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack
Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack
รายละเอียดสินค้า:
Place of Origin: Shenzhen ,China
ชื่อแบรนด์: Top-King
ได้รับการรับรอง: ISO9001:2008;RoHS
Model Number: 40C
การชำระเงิน:
Minimum Order Quantity: 1000 meters
ราคา: Negotiation
Packaging Details: 10 bars packing together in woven bag
Delivery Time: Within 10 working days after received deposit.
Payment Terms: TT, L/C, Western Union
Supply Ability: 5000 meters per day
ติดต่อ
รายละเอียดสินค้า
Name: Metal Roller Track Frame Material: Metal
Wheel Color: White Bearing: 100 KG/Meter
Width: 40mm Height: 50 mm
Standard length: 4000 mm/pcs Recyclable: YES
Frequency of use: Very high Application: Track Flow ,Conveyor, recycle trolley.etc
แสงสูง:

roller track systems

,

heavy duty roller track

Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack



Description :



ROLLER TRACK is also widely known as PLACON.
PLACON is a compound word abbreviated from PLASTIC WHEEL CONVEYOR



It can be easily combined to pipe.

Being light and easy to use, the FLOW RACK, using the PLACON, can improve the efficency

of goods circulation due to its easiness to control quality and stock by the first in first out rules,

and easiness to cope with the diversitification of goods.

The specification of ESD placon is the same with normal placon



Applied to runner such as sliding shelf, slide way shelf, Carton flow rack & shelves, gravity flow rack, fifo flow storage etc.Widely used in the warehouse storage field, with high strength, self-lubricating, shock resistance, long life.

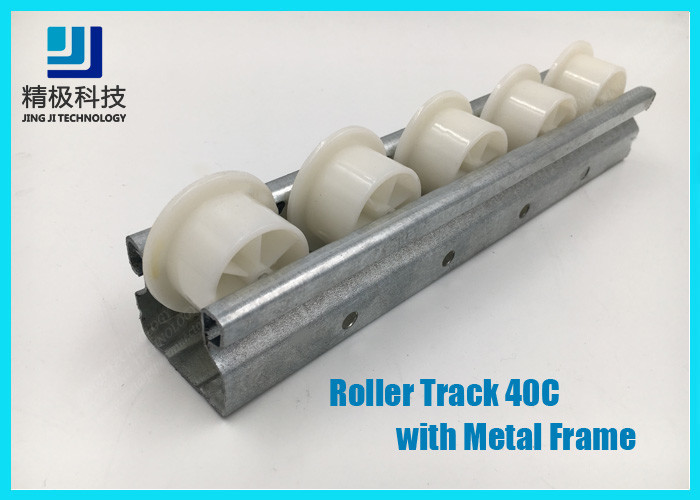

Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack 0



Specification :



Item code 40C
Production name Metal roller track
Color of wheel white/black
Standard length 4000mm per bar
Width of track 40 mm
Reusable Yes
Material of wheel PP

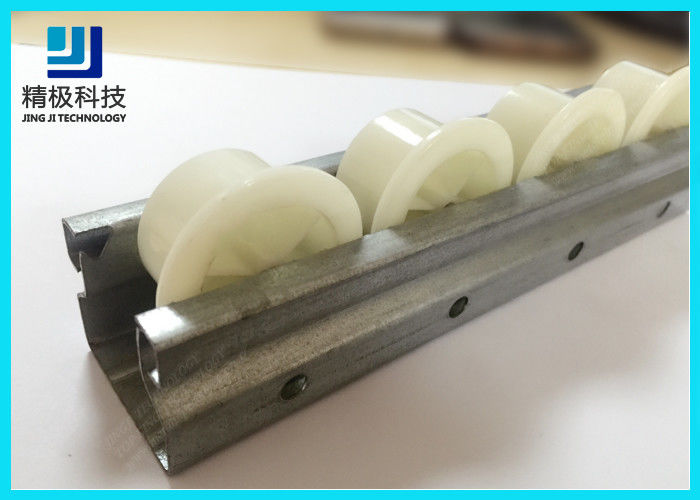

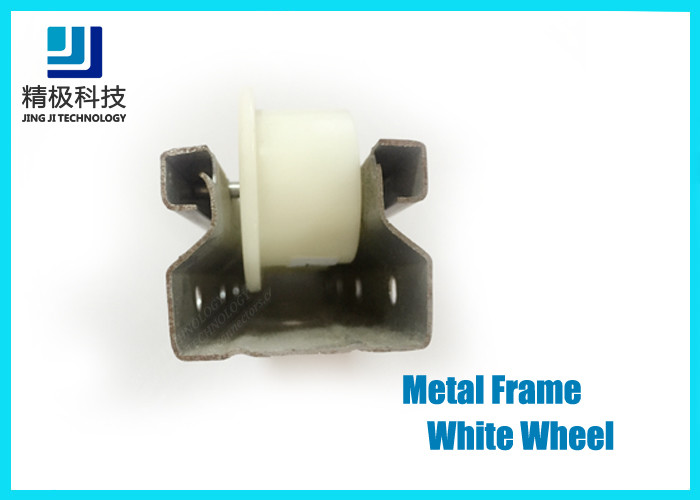

Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack 1Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack 2



Other Roller Track



Width 40mm :40A/40B/40D/40M

Width 60mm:60A/60B/C

Width 85mm:85M

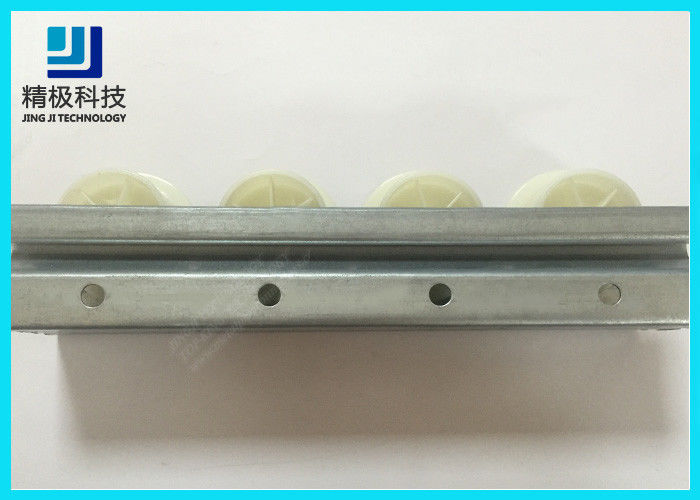

Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack 3



Features:



1. Roller tracks are designed to efficiently transport material of varied size and weight.

2. Using the placon can improve the efficiency of goods flow, due to its easiness to control quality

and store by the ' first-in first-out' ( FIFO) rules
3. Roller tracks are most often used in flow racks, but can be used for virtually any material flow

application, when combining with our coated pipes and pipe fitting.
4. Ideal for requirements in warehouse racking
5. Using our all kinds of metal pulley connectors, the roller tracks are easily installed and will

support significant weight. The slope and spacing between tracks is adjustable and determined

by the size and weight of the material being handled.





Applications:



The system is supported by a wide selection of roller styles,mounts,frames,components and guide rails.Precision rollers spin freely and smoothly on polished conveyors which will also result in using less vertical space.



1) Flow Rack built with 28mm pipe and components combines heavy duty handling and storage capacity with simplistic gravity-fed point-of-use part/container conveyance.



2)Bent Pipe Flow Rack guarantees FIFO ergonomic “strike zone” and bent pipe frame offers pleasing aesthetics while reducing the required number of metal joints to assemble.



3)28mm Pipe & Joint System provides rigidity and strength for industrial applications without the need for cross bracing while conveying either boxes or plastic totes.

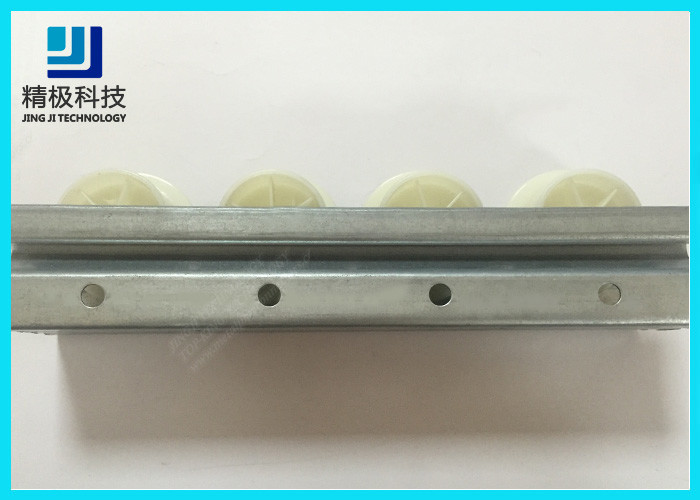

Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack 4Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack 5



About JINGJI (TOP-KING)



In 2004, JINGJI (TOP-KING) Technology was established and located in shenzhen ,mainly manufacturer for design ,production,and sale of industrial storage equipment .after 10 years ,JINGJI(TOP-KING)have won various honorary titles like "ISO9001-2008""China green environmental protection products ""China famous brand""Creative Award" etc.



Today ,JINGJI (TOP-KING) contains the technical center, a state-of-the-art pipe mill, plastic component manufacturing, warehouse, structure assembly facility, and sales offices.



JINGJI(TOP-KING) is the original adaptive material handling system for companies looking to implement continuous improvement and lean manufacturing programs. Our broad line of Aluminum pipe and joints ,PE coated steel pipes, fittings and accessories is designed to let you custom build workstations, flow racks, carts, AGVs and other material handling structures that can easily be changed again and again to match your manufacturing needs. .



The myriad structure drawings in our database can help quick-start your program. We don’t just sell you a product, we’re there to assist in helping make your operation lean and improve your plant’s environment.



Slider Roller Track Type 40C Width 40mm Metal Frame for Conveyors and Flow Rack 6
